Basic Product Information
Included Items and Part Names
Included Items
- The Clock main unit
- Storage pouch
- Quick Start Guide
*Each part is included in a quantity of one.
Part Names
Crown
Turn to adjust volume, brightness, time, or values depending on the mode; press to confirm/select.
Moon Button
Button used to access Relax Time functions.
Sun Button
Button used to access alarm functions.
Illuminance Sensor
Detects ambient brightness and automatically adjusts LED brightness.
Hour LED
12 LEDs shaped like numbers 1 to 12 that light up. They indicate the hour in time display and change according to functions.
Minute LED
60 LEDs arranged outside the Hour LEDs. They indicate minutes in time display and change according to functions.
Moon LED
LED indicating Relax Time status. Also lights during time setting and battery power-saving mode.
Sun LED
LED indicating alarm status. Also lights during time setting and battery power-saving mode.
Side Button
Button used to access timer functions and display battery level.
Charging LED
LED indicating charging status.
Charging Port
Port used for charging.
Power On/Off
How to Turn On Power

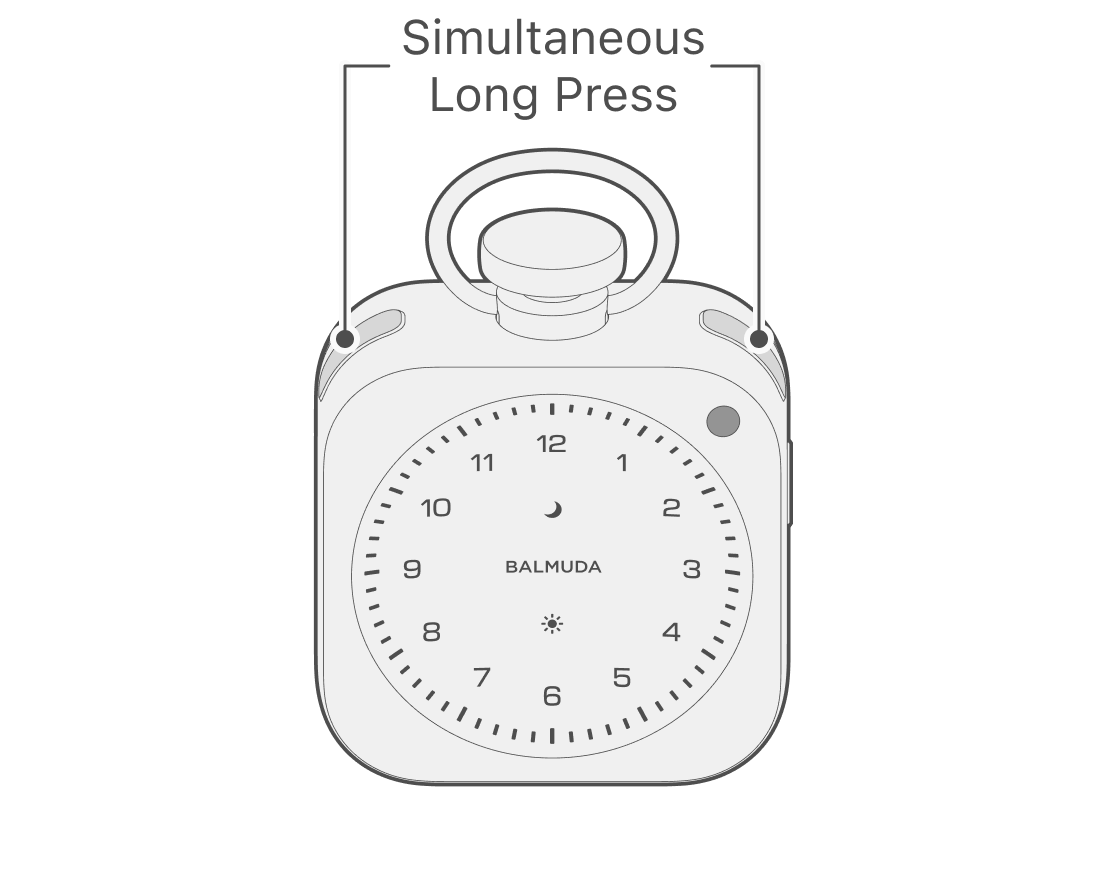

To turn on, press and hold the Moon and Sun buttons simultaneously.
How to Turn Off Power
To turn off, press and hold the Moon and Sun buttons simultaneously while the power is on.
About Charging
Charging Method
Charge using a USB Type-C cable.
Charging The Clock requires a USB power source capable of 15W (5V3A) or higher. Use a USB cable with USB-C connectors on both ends and an adapter or charger that can output 15W or more from a single port.
Operation During Charging
You can check the power status with the charging LED.
Off ：Battery Powered
On ：Fully Charged
Pulse ：Charging
Blink ：Low Charge
Checking Battery Level

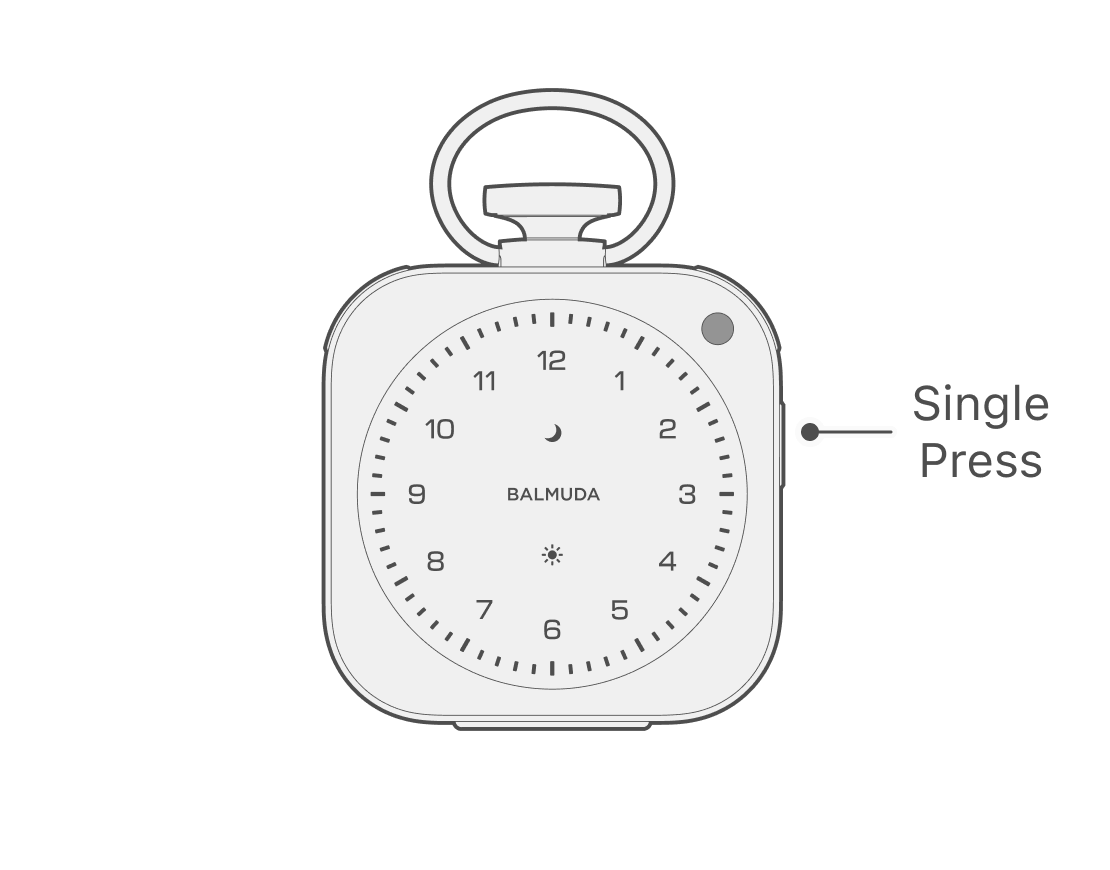

Press the side button once to display the current battery level with a motion.

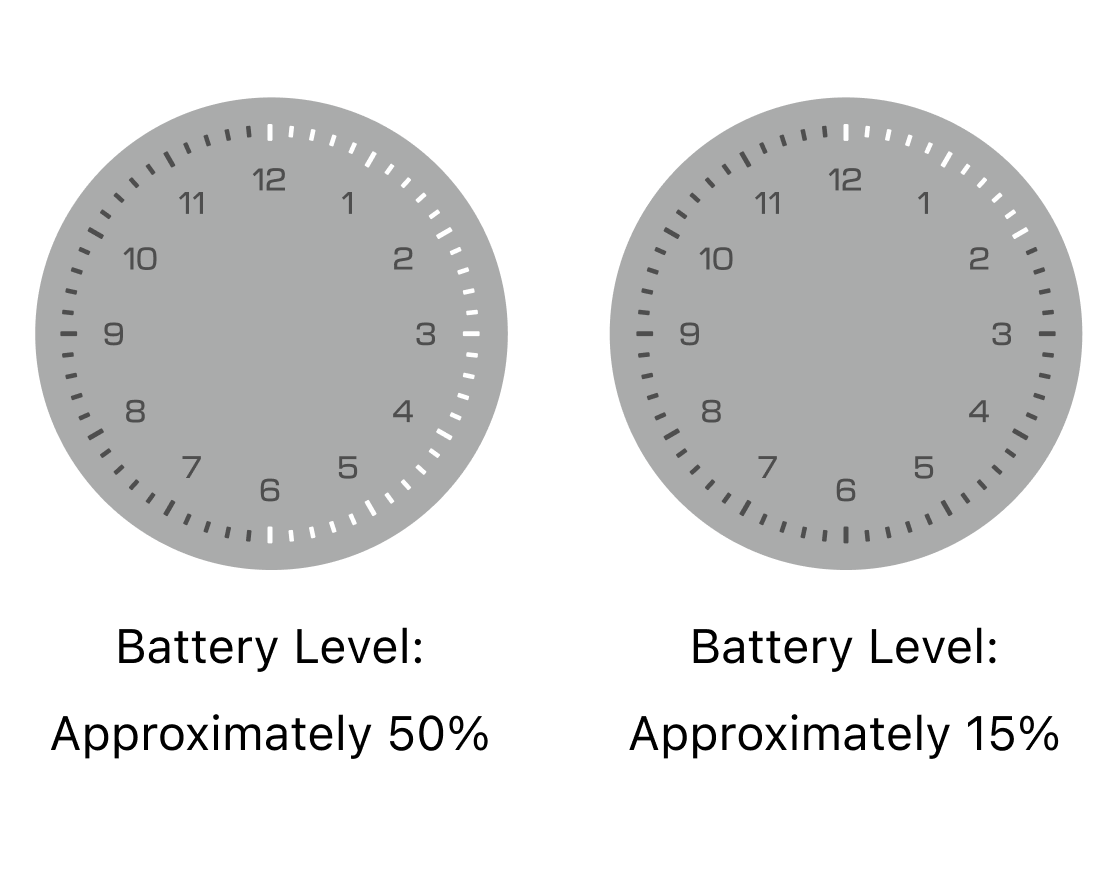

Battery level is shown in six steps; when fully charged, all Minute LEDs light up. The number of lit Minute LEDs decreases as battery level drops.
When Battery Level is Low
When the battery level gets low, you will be notified with sounds in stages. The first alert prompts you to charge the device. As the battery level drops further, you will hear a notification indicating the switch to battery saver mode.
When the battery level falls below 15%, the device enters battery saver mode. The charging LED will blink, and the moon and sun LEDs will flash alternately. Additionally, the maximum brightness and volume are limited, and the clock display switches to Simple mode (without the second hand). Relax Time, timer, and clock style changes will be disabled.
When Battery is Depleted
When battery level reaches zero, the same motion and sound as when powering off play, and the device automatically turns off.
